Ottawa Cabinet Door Spraying Guide for Painters and Contractors
- Axcell Painting
- 1 day ago
- 10 min read
Cabinet repainting can be one of the most profitable upgrades on a residential project, but cabinet doors expose every weakness in the process. Brush marks, dust nibs, soft coatings, poor adhesion, and slow cure times all show up fast once the doors are back under kitchen lighting.
For Ottawa painters and contractors, cabinet door spraying is often the difference between a serviceable repaint and a finish that looks factory-applied. It also creates a practical subcontracting opportunity. A dedicated spray partner can handle the controlled-shop portion of the work while the primary contractor manages the client, site prep, boxes, trim, and installation schedule.
This guide covers the benefits, product choices, equipment, common problems, and Ottawa-specific best practices that matter when cabinet door spraying becomes part of a professional painting workflow.
Cabinet door spraying gives painters better control over finish quality
Cabinet doors are high-touch, high-visibility surfaces. They catch light from windows, under-cabinet fixtures, and ceiling pot lights. Any texture variation is easy to see.
Spraying improves the final result because it gives the coating a more even film build than brushing or rolling. A well-set spray system can produce a smooth, consistent finish across rails, stiles, recessed panels, shaker profiles, and slab doors.
The benefits are clear:
Smoother appearance
Spraying reduces brush marks and roller stipple, which is especially important on modern flat-panel and shaker doors.
More even coverage
Edges, profiles, and routed details receive a more consistent coating when the painter uses the right tip, pressure, and spray distance.
Better film build
A controlled spray process helps build the coating to the manufacturer’s recommended thickness without flooding corners or leaving dry spray on edges.
Cleaner workflow
Doors can be removed, labelled, sprayed, and cured off site while on-site crews work on cabinet boxes, walls, trim, or other project areas.
Higher perceived value
Clients judge cabinet refinishing by the doors first. A sprayed door that feels smooth and hard can raise the perceived quality of the whole job.
Spraying also makes professional standards easier to repeat. Once rack spacing, product choice, dry times, sanding schedule, and spray settings are dialled in, crews can produce consistent results from one project to the next.
Durability starts before the first coat goes on
A beautiful sprayed finish will fail if surface prep is weak. Kitchen cabinets collect grease, silicone residue, hand oils, wax, food film, and cleaning product residue. Ottawa homes also see winter humidity swings and dry indoor air, both of which can affect wood movement and coating performance.
Good durability depends on a full system, not one premium topcoat.
A reliable cabinet door process usually includes:
Labelling and mapping
Mark every door and drawer front before removal. Use a map, numbered tape, or a hidden marking system that will survive cleaning and sanding.
Degreasing
Use a dedicated cleaner suited for kitchen contamination. Rinse or wipe as directed by the product manufacturer. Do not sand grease into the surface.
Scuff sanding
Sand to create mechanical adhesion. The goal is a dull, even surface, not aggressive material removal.
Dust removal
Vacuum profiles, blow out corners where appropriate, and use a proper tack method that does not leave residue.
Bonding primer
Choose primer based on the substrate and existing finish. Melamine, laminate, thermofoil, stained wood, and previously painted doors may all need different primers.
Sanding between coats
Light sanding helps remove raised grain and nibs, and improves the feel of the final topcoat.
Controlled cure
Dry to touch does not equal cured. Doors need enough time and airflow before stacking, wrapping, transport, and reinstallation.
The best cabinet finishes are built in layers. The spray coat matters, but cleaning, sanding, priming, and curing decide how the job performs over time.
For subcontracted spraying, this system has to be documented. The primary painter and spray partner should agree on who handles cleaning, sanding, priming, repairs, transport, and final inspection. Gaps in responsibility lead to callbacks.
Choosing the right paint and primer for cabinet doors
Cabinet doors need coatings that cure hard, resist blocking, and stand up to repeated cleaning. Standard wall paint is rarely the right choice. It often stays too soft, marks easily, and may not resist hand oils around pulls and knobs.
Professional cabinet spraying usually calls for one of these coating types.
Coating type | Best use | Watch for |
Waterborne cabinet enamel | Residential repaints where low odour and easier cleanup matter | Needs correct dry time and humidity control |
Waterborne lacquer or 1K/2K systems | Shop spraying where a harder, smoother finish is required | Requires strict product handling and safety practices |
Alkyd-modified waterborne enamel | Good flow and levelling with better hardness than basic acrylic | Longer cure windows may affect scheduling |
Solvent-based systems | Specialty shop use where permitted and properly controlled | Odour, flammability, VOC, and disposal requirements |
The right choice depends on the substrate, sheen, client expectations, shop setup, and crew experience. Ottawa contractors also need to think about seasonality. A product that dries well in July may behave differently during a damp spring week or in a cold garage.
Match primer to the substrate
Primer choice is often the critical decision.
Stained oak may need stain-blocking and grain management.
Melamine and laminate need high-adhesion primers.
MDF edges need sealing because they absorb coating differently than faces.
Previously painted doors need testing for adhesion and compatibility.
Thermofoil doors may need careful evaluation before accepting the job, especially if the film is lifting.
Always follow the coating manufacturer’s technical data sheet for recoat windows, sanding requirements, film thickness, temperature range, and humidity range. If the product data sheet conflicts with shop habits, follow the data sheet.
Choose sheen with real use in mind
Satin and low-sheen finishes often hide minor surface defects better than high gloss. Higher sheens can look sharp, but they show dust, scratches, and substrate imperfections more readily. For many Ottawa kitchen repaints, a satin or semi-gloss cabinet coating gives a practical balance between cleanability and appearance.

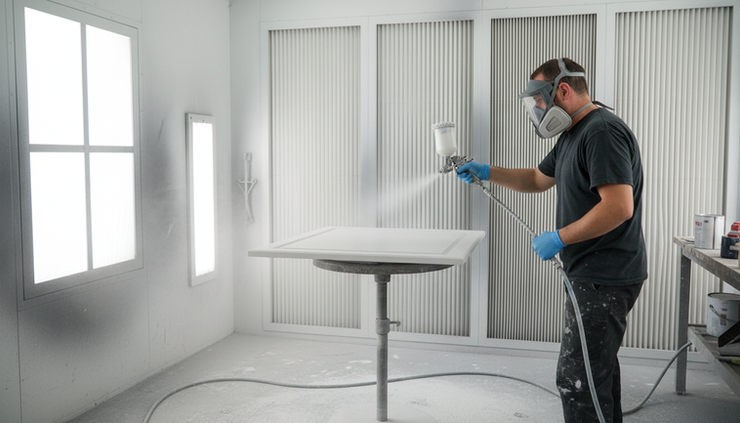

Spray equipment affects both speed and finish
A good cabinet finish needs the right tool for the coating. There is no single best setup for every shop, but the equipment must atomize the product well and allow enough control for profiles, edges, and flat panels.
Common cabinet door spraying setups include:
HVLP turbine or conversion guns
Good for fine control and reduced overspray. They can work well for smaller batches and fine finishes, but some thicker waterborne products may need reduction or a different needle setup.
Airless sprayers with fine-finish tips
Useful for production speed and even film build. They require careful pressure control and good technique to avoid heavy edges or excessive overspray.
Air-assisted airless systems
Often used in professional shops because they combine production speed with fine finish control. They cost more and require more setup knowledge.
Pressure pots
Helpful for repeat shop work where a consistent material feed supports steady spraying.
Key equipment details matter:
Use fine-finish tips suited to the coating and door profile.
Strain coatings before spraying to reduce tip clogs.
Keep filters clean and matched to the product.
Test the fan pattern before every batch.
Set up good lighting so lap marks and dry spray show before the coat flashes.
Maintain spray distance and overlap across the full door.
Racking also deserves attention. Doors need support that allows edge coating, safe flipping, airflow, and clean movement through the shop. Poor racking leads to fingerprints, dents, stuck edges, and slow production.
Common cabinet spraying challenges can be managed with a better process
Even skilled painters run into problems with cabinet doors. Most issues come from contamination, poor environment control, rushed handling, or product mismatch.
Dust nibs and debris
Dust is one of the most common finish complaints. Cabinet doors should be sprayed in a space separated from sanding, cutting, and general jobsite activity.
Ways to reduce dust include:
Clean the spray area before coating.
Use filtered airflow where possible.
Wet or tack floors only if it does not create humidity issues.
Keep sanding and spraying zones separate.
Wear clean spray clothing or coveralls.
Allow airborne dust to settle before spraying.
If nibs appear, let the coat dry as directed, sand lightly, clean well, and apply the next coat. Do not chase debris in wet finish unless the product system allows it and the operator has enough experience.
Poor adhesion
Adhesion failure often traces back to grease, silicone, glossy surfaces, or the wrong primer. A simple test patch can prevent a costly full-job failure. For questionable substrates, test cleaning, sanding, primer, and topcoat in a hidden area or on a sample door.
Orange peel
Orange peel can come from thick material, poor atomization, wrong tip size, low pressure, fast dry conditions, or spraying too far from the surface. Adjust one variable at a time. Check product temperature, viscosity, pressure, tip condition, and spray distance.
Runs and heavy edges
Door profiles collect material quickly. Spray edges with care, and avoid loading recessed corners. Many shops use a sequence that coats backs, edges, then faces, with careful flash time between steps. Good lighting helps catch sags while they can still be corrected.
Blocking and imprinting
Blocking happens when doors feel dry but still print, stick, or mark during stacking or transport. This is a major risk when schedules are tight. Use proper dry racks, respect cure times, and avoid wrapping doors too early. Soft foam, plastic, and some packaging materials can imprint coatings that have not cured enough.
Ottawa-specific best practices for cabinet spraying
Ottawa contractors work under the same broad Ontario and federal product rules as other local trades, but local conditions shape the way cabinet spraying should be planned.
Manage VOCs, odour, and ventilation responsibly
Paint and coating products sold in Canada must meet applicable VOC requirements. Still, the way products are sprayed matters. Spraying creates airborne particles and may create odour concerns, especially in attached garages, townhomes, condos, and dense residential streets.
Professional practice includes:
Reading safety data sheets before use.
Using proper respirators and cartridges for the product.
Providing ventilation without exhausting overspray toward neighbours.
Keeping ignition sources away from flammable materials.
Using spray booths or controlled spray areas where required.
Storing coatings and solvents safely.
Contractors should also confirm insurance coverage for spraying operations. Some policies treat shop spraying, on-site spraying, and solvent use differently.
Handle waste through proper channels
Do not pour paint, solvents, wash water, or coating sludge into storm drains or household drains. Ottawa has municipal waste rules and household hazardous waste programs, and commercial operators may have extra requirements depending on volume and material type.
Best practice is simple: keep liquid waste contained, label materials, follow the product safety sheet, and use approved disposal routes. When in doubt, confirm current requirements with the City of Ottawa or the appropriate provincial authority.
Plan around Ottawa weather
Cabinet spraying is sensitive to temperature and humidity. Ottawa’s cold winters, damp shoulder seasons, and humid summer days can all affect dry time and cure.
In winter, cold doors transported from a van or garage can collect condensation when brought into a warm shop. Let them acclimate before sanding or spraying. In summer, high humidity can slow waterborne coatings and affect flow. Air movement helps, but too much direct airflow can cause dry spray.
A controlled shop environment is one of the strongest arguments for subcontracting cabinet doors. It reduces weather risk and keeps cabinet coating away from jobsite dust and household activity.
Respect condo and multi-unit constraints
Ottawa has many condos, townhomes, and multi-unit properties where spraying on site may not be practical. Building rules may restrict odours, noise, elevator use, parking, and material storage. Removing doors and spraying them off site avoids many of these issues, while still allowing the visible cabinet boxes to be finished carefully on location.
A dedicated subcontracting partner can protect schedule and reputation
Cabinet door spraying can slow a general repainting job if the crew lacks space, racks, spray equipment, or curing capacity. A dedicated subcontracting partner gives painters and contractors a way to offer cabinet refinishing without building a full spray shop.
The strongest subcontracting arrangement is quiet, reliable, and process-driven. The homeowner sees one professional project. Behind the scenes, the spray partner handles the doors and drawer fronts with a repeatable shop system.
A good cabinet door spraying partner should provide:
Clear intake requirements for labelled doors and drawer fronts.
Written coating system options.
Agreed turnaround expectations.
Safe transport and storage practices.
Sample finishes when needed.
Communication about defects, loose thermofoil, damaged doors, or adhesion concerns.
Consistent quality checks before pickup or delivery.
The primary contractor still controls the client relationship. That includes colour approval, scope, schedule, site protection, cabinet box painting, hardware changes, and final installation. The spray partner supports the result without taking over the job.
This model works especially well for painters who already have steady residential repainting work but want to add higher-value cabinet projects. It can also help renovation contractors provide a cleaner finish on kitchen refreshes without sending doors to a distant millwork shop.
Quality control should happen before the doors leave the shop
Final inspection is easier under controlled lighting than in a client’s kitchen after installation. Every door should be checked for adhesion concerns, missed edges, colour consistency, sheen consistency, dust nibs, runs, and handling marks.
A practical inspection process includes:
Viewing doors from multiple angles under strong side lighting.
Checking edges and profiles, not only flat faces.
Confirming the correct number of doors and drawer fronts.
Letting the coating cure enough for safe handling.
Separating finished pieces with materials that will not imprint.
Sending handling instructions with the doors.
Touch-ups should be planned carefully. Sprayed cabinet doors do not always touch up invisibly with a brush. If a defect is in a high-visibility area, recoating the full face may be the better option.
Hardware also affects the final result. New pulls may require filling old holes and drilling new ones. That work should happen before final spraying whenever possible. Drilling after finishing creates chip risk and may expose raw substrate.
The takeaway for Ottawa painting professionals
Cabinet door spraying rewards discipline. The finish quality comes from repeatable prep, the right primer, a cabinet-grade topcoat, controlled spraying, patient curing, and careful handling.
For Ottawa painters and contractors, the bigger business lesson is just as practical. Not every company needs to own a spray booth, drying racks, and fine-finish equipment to offer cabinet refinishing. A dedicated subcontracting partner can handle the door and drawer spraying while the contractor keeps control of the project and client experience.
The best results come when both sides agree on standards before the first hinge comes off. Label the doors, test the coating system, respect Ottawa jobsite and waste practices, and build enough curing time into the schedule. That is how cabinet refinishing becomes a dependable service instead of a risky add-on.
