A professional Shaker cabinet finish follows five disciplined steps: teardown and prep, primer and grain fill, base coats, build coats with sanding, and cure and reassembly. A pro-managed project in Ottawa typically runs 7 to 10 days, though a hobbyist working solo, evenings and weekends, should expect longer.
TL;DR:
Proper surface preparation, including thorough degreasing and sanding, is essential to prevent finish failures and ensure long-term durability.
Applying grain filler on open-grain woods like oak and choosing the correct primer significantly improves the smoothness and sealing of the final finish.
The ideal number of coats is three to four thin layers, with careful sanding between coats to reach a total dry film thickness of 4 to 5 mils.
Full curing of the finish takes 7 to 14 days, and rushing this stage risks damage and reduced hardness despite surface dryness.
Using professional tools like HVLP sprayers and dedicated primers enhances finish quality, especially when paired with controlled spray environments for doors.
Table of Contents
What is the professional 5-step workflow for finishing Shaker cabinets?
Shaker doors are unforgiving. Their flat panels and simple frame make every flaw in the surface visible under kitchen lighting, which is exactly why the professional world has settled on a repeatable sequence rather than shortcuts. The RoyalAcademy’s 5-step cabinet refinishing system breaks the job into surface prep, bonding primer, base color coat, build coats with intercoat sanding, and final cure. That order is not arbitrary. Skip a phase, or rush one, and the mistake shows up two months later as a chip at the hinge or a cloudy patch under the window light.

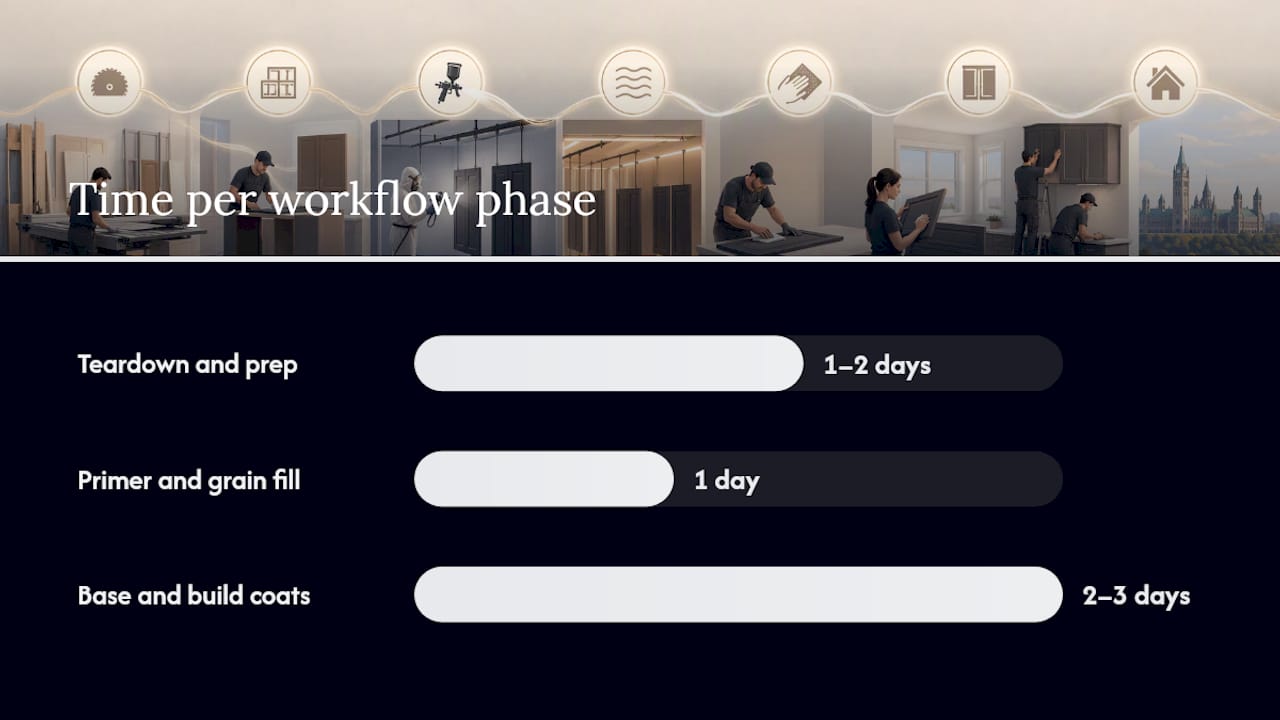

Here is the roadmap before we go step by step:
Teardown and prep: doors and hardware come off, surfaces get degreased, sanded, and de-glossed.
Primer and grain fill: bonding primer seals the substrate; open-grain woods like oak get filled so grain doesn’t show through.
Base coats: the first color layers go on, usually sprayed for doors and rolled or brushed for boxes still hanging in the kitchen.
Build coats and sanding: several thin layers, each sanded smooth, build toward a durable film.
Cure and reassembly: hardware and doors go back on only after the finish has hardened enough to resist dents and fingerprints.
For doors, spraying wins almost every time. It lays down finish evenly without brush marks, which matters enormously on a flat Shaker panel where every stroke line would be visible. Cabinet boxes that stay mounted in the kitchen are usually brushed and rolled with a high-density foam roller, since spraying in an occupied space creates overspray problems that aren’t worth the mess.
Professionals target a dry film thickness of 4 to 5 mils across the whole coating system. That is thinner than most people assume. It typically takes three to four coats of a cabinet-grade finish to reach that range without over-building the film, which can crack over time. For an average kitchen with 15 to 20 doors and drawer fronts, budget one to two full days for prep, a day for priming and grain fill, and two to three days for base and build coats before the cure clock even starts.
Step 1: Teardown, cleaning, and surface preparation
Nothing in the remaining four steps matters if this one gets rushed. Contaminated or poorly sanded surfaces cause the vast majority of finish failures, and once paint is on top of a greasy substrate, there is no fixing it without stripping back down to bare wood.
Start with a labeling system before a single door comes off its hinges. Number each door and drawer front, and mark the corresponding location on the box with matching tape or a marker. Homeowners who skip this step almost always end up with a door that swings crooked or a drawer front that no longer lines up, because Shaker cabinets are rarely as symmetrical as they look.
Remove and label. Take off doors, drawer fronts, and all hardware. Bag screws and hinges by location, and store doors flat on a padded surface, never leaning on an edge where the frame can warp.
Degrease thoroughly. Kitchen cabinets accumulate cooking grease that is invisible to the eye but very real to a paint sprayer. A TSP solution or a commercial degreaser, applied and worked into the corners with a scrub pad, removes it. Rinse with clean water and let the surface dry completely before moving on.
Test for existing finish type. Wipe a hidden spot with denatured alcohol on a rag. If the old finish softens or lifts, it is likely shellac or lacquer, and light scuff sanding will usually be enough. If nothing happens, you are probably dealing with a catalyzed or polyurethane finish that needs more aggressive sanding, or in stubborn cases, chemical stripping.
Sand in a grit progression. Start around 120 grit to knock down gloss and open the surface, then move to 150 or 180 to smooth it out. You are not trying to remove the old finish entirely, just create enough mechanical tooth for the new primer to grab.
Remove all dust. Vacuum every surface, wipe with a tack cloth, and if you have access to a HEPA-filtered shop vacuum, use it. Dust left behind embeds in the primer and shows up as tiny bumps under every coat that follows.
Set up containment. If boxes are staying in place, mask the surrounding walls, floor, and countertops with plastic sheeting and painter’s tape. Overspray travels farther than most people expect, even with a roller.
Pro Tip: Run your bare hand across the sanded surface after wiping with a tack cloth. If it feels perfectly smooth with zero grit, you’re ready for primer. If you feel any texture, sand again. Your hand catches what your eyes miss.
Step 2: Grain filling and primer selection
Open-grain woods, oak especially, will fight you if you skip this step. The wood’s natural pores telegraph straight through paint no matter how many coats you apply, leaving a surface that looks painted but feels rippled under your fingers. Grain filler prevents that telegraphing and is close to mandatory on oak, ash, and ring-porous species if you want a factory-smooth result.

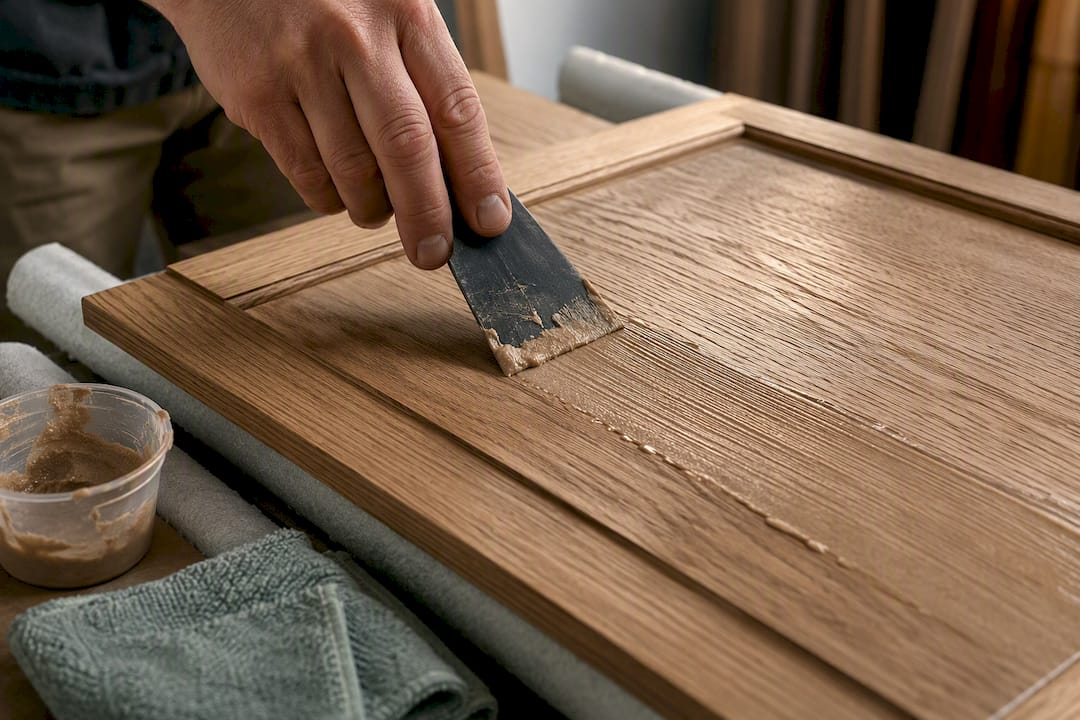

Apply grain filler with a flexible plastic spreader, working it across the grain so it packs into the pores rather than skating over them. Let it cure fully, then sand back to 220 grit until the surface reads flat and even. Deep-grain oak sometimes needs a second application, particularly on rail-and-stile joints where the grain runs in two directions at once.
Primer choice matters more than most DIYers assume. There are two categories worth knowing:
Bonding or adhesion primers, built to grip slick, previously finished surfaces without requiring you to sand down to bare wood on every square inch.
Stain-blocking primers, formulated to seal tannins and old stains so they cannot bleed through your topcoat weeks later.
Professional refinishers generally reach for dedicated bonding or blocking primers rather than combination paint-and-primer products, because a single-purpose primer adheres better and seals more reliably than a product trying to do two jobs at once.
On dry film thickness: professionals build the entire finish system, primer included, toward a 4 to 5 mil dry film thickness target. Primer typically accounts for one of those coats, which is one more reason to skip cheap primers that require three passes to achieve coverage a quality bonding primer gets in one.
Apply primer in a thin, even coat, let it dry per the label, then scuff sand with 320 grit to knock down any raised grain or brush texture before your first color coat. This intercoat sanding step is not optional. It is what separates a primer layer that feels like part of the substrate from one that feels like a coat sitting on top of it.
Knotty pine and wood with visible tannins need special attention. Standard primers will let those tannins bleed through as yellow or brown ghosting weeks after painting, sometimes even through white paint. Shellac-based primers, often labeled BIN, block tannins more reliably than latex-based products and are worth the extra step on any wood with visible knots or a reddish tint.
Step 3: Applying base coats with proper spray technique

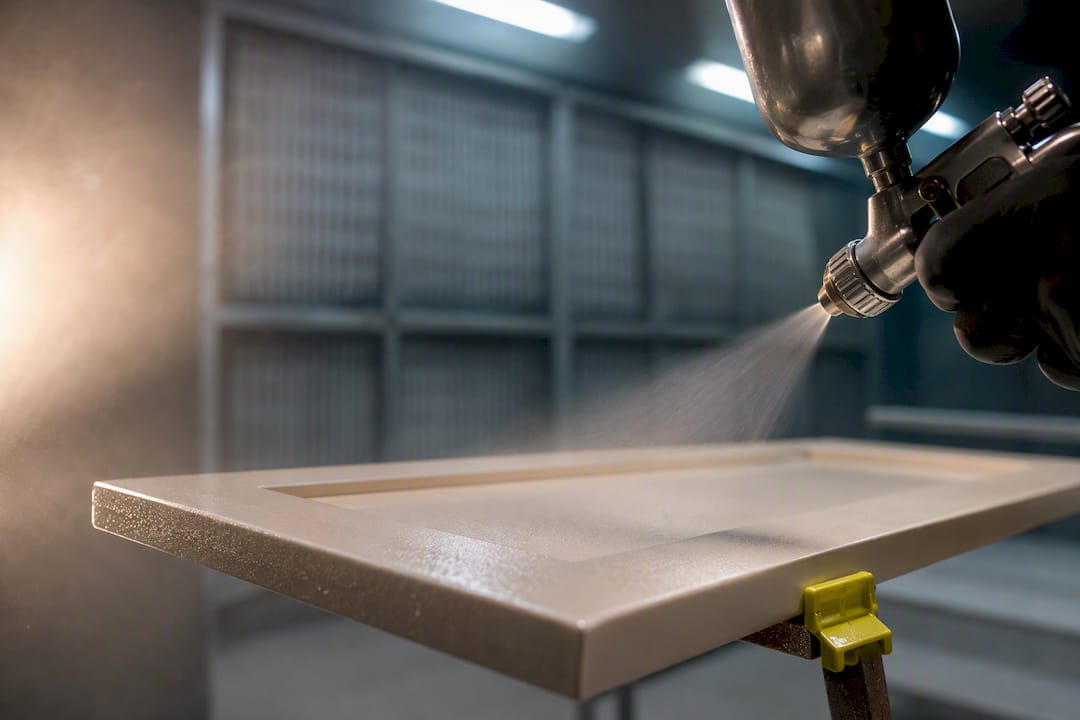

Once primer is sanded and clean, the base color coat is your first real color layer, and it sets the tone for every coat that follows. Rushing this step to “just get color on” is where a lot of DIY projects go sideways.
Start with the paint itself. Strain it through a paint strainer bag before loading your sprayer, even if the can looks clean. Skins, dried clumps, and manufacturing debris clog spray tips and cause spitting, which shows up as tiny craters in your finish. If you are thinning for an HVLP sprayer, follow the paint manufacturer’s guidance for that specific product rather than guessing at a ratio, since cabinet-grade enamels vary widely in viscosity requirements.
Technique matters as much as the equipment. A few fundamentals that separate an even coat from a blotchy one:
Hold the spray gun 6 to 8 inches from the surface and keep that distance constant throughout the pass.
Move at a steady, even speed. Speeding up mid-pass leaves thin spots; slowing down leaves runs.
Overlap each pass by about 50% so you’re always spraying into wet edge, not a dry line.
Always test spray pattern and coverage on a scrap board or the back of a door before touching your first visible surface.
Watch for runs at inside corners and panel edges, where paint tends to pool if you linger too long.
Doors are the best candidate for spraying because they lie flat and can be rotated for full access to every edge. Painting doors off-site or in a dedicated spray area with good airflow gives the most even atomization and keeps dust out of a wet finish, which is part of why professional crews often separate door spraying from box work entirely.
Cabinet boxes still mounted in the kitchen are the exception where brush-and-roll makes sense. A quality angled sash brush handles inside corners and edges, while a high-density foam roller lays down the flat panel sections without leaving stipple texture. Load the roller lightly and finish each section with a light pass to knock down roller marks while the paint is still wet.
Before committing to full coverage, paint a full test panel and let it dry to its true color. Paint often shifts noticeably in sheen and tone as it cures, and comparing a wet swatch against your cabinet doors is a common way people end up unhappy with a “wrong” color that was actually just still drying.
Pro Tip: Keep a wet edge across the entire door face, not just within one panel. If you stop to admire your work halfway through a rail, you’ll see the lap line the moment the light hits it at an angle.
Step 4: Build coats, intercoat sanding, and reaching a factory-smooth surface
This is the step that separates a decent paint job from one that looks like it came out of a cabinet shop. The base coat gives you color; the build coats give you depth, durability, and the glass-smooth surface Shaker doors are supposed to have.
The rule here is thin coats, not thick ones. A single heavy coat feels like it should save time, but it almost always sags at vertical edges and takes far longer to level out than two properly thinned coats applied ten minutes apart. Multiple thin layers also reduce the risk of trapping solvent underneath a skinned-over surface, which is a common cause of soft spots and wrinkling weeks later.
Sand lightly between every build coat, using a fine grit in the 320 to 400 range. This is not about removing material. It is about knocking down dust nibs and the slight texture that any coat develops as it dries, so the next layer has real mechanical tooth to bond to instead of sitting on a glassy, unsanded surface. Skip this step and you risk delamination where an upper coat peels away from the one beneath it, sometimes not until months after the project is done.
How many coats do you actually need? Professionals build toward a total system thickness of 4 to 5 mils dry film, which typically works out to three or four thin coats depending on the product and your spray or roll technique. Beyond that range, added coats do not improve durability. They just increase the risk of cracking, since thicker films flex less with seasonal wood movement.
Common texture problems and how to handle them:
Orange peel texture: usually caused by spraying too far from the surface or with too little thinning. Let the coat dry, sand flat with 320 grit, and respray with adjusted distance or viscosity.
Dust nibs: light, isolated bumps. Sand them flush with fine sandpaper or a fine abrasive pad, wipe clean, and recoat.
Brush or roller stipple: sand back with 320 to 400 grit and either switch tools or thin the product slightly for the next pass.
Visible lap lines: these mean the wet edge was lost. Sand and respray that section with a faster, more overlapped technique.
If a whole panel looks wrong rather than just one small area, it is almost always faster to sand the entire face back and respray it than to spot-fix and hope the repair blends in under kitchen lighting.
Step 5: Final cure, inspection checklist, and reassembly
Here is where impatience undoes weeks of careful work. Paint that feels dry to the touch after a few hours is not the same as paint that has fully cured, and the gap between those two states is where most post-installation damage happens.
Dry-to-touch means solvents have evaporated enough that the surface no longer feels tacky, which can happen within hours. Full cure, where the finish reaches its actual hardness and scratch resistance, is a chemical process that takes professional-grade cabinet enamels 7 to 14 days, and some products need up to 21 days to reach maximum hardness. Manufacturer labels touting “dry in one hour” describe the surface, not the cure, and treating a one-day-old finish like it’s fully hardened is how homeowners end up with fingerprints, sticker marks, and dent impressions baked permanently into a brand new door. If you want the fuller breakdown of what happens chemically during that window, this explanation of curing timelines covers it well.
Before reassembly, run through this checklist:
Check sheen uniformity across every door face under natural light, not just the overhead kitchen light, since sheen differences often only show up at certain angles.
Inspect edges and corners where spray coverage commonly thins out or where brush work near hinges tends to get skipped.
Feel for dust nibs with your palm across the whole surface. Anything you can feel, you’ll eventually see.
Test adhesion on a hidden edge with a piece of tape pressed and pulled. If paint lifts, the surface needs more cure time before handling.
Confirm hardware alignment by dry-fitting hinges before final tightening, adjusting for any slight shift from the extra coats of paint and primer.
Reassemble with padded surfaces under every door while you work, and reinstall hinges in the same location you labeled during teardown. Tighten hardware gradually rather than fully torquing the first screw, so you can make small alignment adjustments before everything is locked in place.
If you notice a door that will not close flush no matter how you adjust the hinge, or paint that never seems to harden past a soft, tacky feel after two full weeks, those are signs of a structural or adhesion problem that goes beyond a DIY fix. A professional can usually assess it and correct it, but the earlier you catch it, the smaller the repair.
What common mistakes ruin a Shaker cabinet finish?
Even careful DIYers hit the same handful of problems, and almost all of them trace back to one of the five steps above being rushed or skipped.
Adhesion failure shows up as paint peeling in sheets, often at edges first. It almost always means the surface wasn’t degreased or sanded enough before primer went on. Scuff sand the affected area back to a stable layer and reprime before recoating.
Dust nibs and contamination appear as small bumps trapped under the finish. Prevent them with better filtration and a cleaner workspace; fix existing ones by sanding flush and recoating that section.
Excessive film build and cracking happen when too many coats stack up beyond the target range, or when coats go on before the previous one has properly cured. Sand back to a stable layer and rebuild with thinner, properly spaced coats.
Unsealed MDF edges absorb paint unevenly and can swell if moisture gets in, leaving a rough, fuzzy texture along cut edges. Seal exposed MDF edges with a dedicated edge sealer or an extra primer coat before color goes on.
Seasonal expansion gaps at rail-and-stile joints are usually cosmetic, caused by normal wood movement between dry winter air and humid summer months. A structural gap, one that affects how the door closes or reveals bare wood, is different and points to a joint that needs repair, not just caulk.
If you’re weighing whether a gap or crack is worth a full repair versus a quick touch-up, the same logic that applies to interior door replacement mistakes applies here: small alignment issues caught early are cheap fixes, while ignored ones tend to compound.
What tools and materials do you actually need?
A shortlist beats a shopping cart full of products you’ll use once. Here is what matters, roughly in order of impact on your final result.
HVLP sprayer: the single biggest upgrade for door quality. A consumer-grade unit works fine for a one-time kitchen project; you don’t need a shop-grade turbine system.
High-density foam rollers: for box interiors and any surface you’re brushing and rolling instead of spraying.
Quality angled sash brush: for cutting in edges, inside corners, and any spot a sprayer or roller can’t reach cleanly.
Respirator with organic vapor cartridges: cabinet-grade finishes and strippers release fumes that a paper dust mask does nothing to stop.
HEPA-filtered shop vacuum: for final dust removal before every coat, not just at the start of the project.
Tack cloths: cheap, disposable, and worth using between every sanding step.
Bonding primer, grain filler, and cabinet-grade topcoat: waterborne enamels are the most forgiving choice for a first-time DIYer; two-component (2K) systems offer more durability but demand more experience to apply well.
Masking film and painter’s tape: for containment if boxes are staying mounted in the kitchen during the process.
If you’re deciding where to spend more versus where to save, put your budget toward the sprayer, the primer, and the respirator first. A cheap sprayer fights you the entire project, a weak primer undermines everything applied on top of it, and respiratory protection is not the place to cut corners when you’re working with solvent-based products in an enclosed kitchen. For a broader rundown of how these pieces fit together for first-timers, this DIY spraying guide walks through equipment choices in more depth.
How does Ottawa Cabinet Painting apply this 5-step system?
We built our process around the same five phases outlined above, because they work, and because cutting any one of them short is exactly how a $3,000 cabinet refinishing job turns into a $10,000 lesson. Our typical project timeline runs 7 to 10 days from teardown to final reassembly, structured specifically to minimize the chaos a full kitchen renovation creates in your home.
Our prep phase mirrors Step 1 closely, with thorough degreasing and a controlled sanding progression on every door and box. Where we go further than a typical DIY setup is in Step 3: doors leave the kitchen and get sprayed in a controlled environment with proper dust filtration, the same logic behind why professional shops separate door spraying from on-site box work. That separation is one of the biggest reasons a professionally sprayed door looks noticeably smoother than one finished with a roller in an occupied kitchen.
We also don’t shortcut Step 5. Every project includes a full cure window before final hardware reinstallation, because we’ve seen what happens when homeowners load their cabinets back up on day two. That patience, paired with premium primer and topcoat systems, is why we back every completed project with a 6-year warranty. It’s not a marketing line. It’s confidence in a process built on the same prep, film-build, and cure standards this article just walked through.
What actually matters most in this process?
If you take one thing from this entire workflow, take this: the paint you choose matters far less than most people assume, and the surface prep matters far more. We’ve watched homeowners agonize over choosing between three nearly identical cabinet enamels while skipping the degreasing step entirely, and the paint choice was never going to save that project.
The industry’s obsession with 4 to 5 mil dry film thickness targets is useful, but it’s a downstream number. You reach it by building thin coats correctly, not by chasing a mil reading with a gauge. Where conventional advice falls short is the cure timeline. Most guides mention it briefly, then move on, when in reality the gap between “dry” and “cured” is where a huge share of early finish damage actually happens.
If you’re weighing DIY against hiring out, be honest about which phase you’ll actually rush when life gets busy. For most people, it’s prep or cure time, the two steps with the least visible payoff and the most consequence.
